Especificações:
Hardware:
Protocolos e Normas:
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface:
- 1 Fixed Gigabit SFP WAN Port
- 1 Fixed Gigabit RJ45 WAN Port
- 2 Fixed Gigabit RJ45 LAN Ports
- 2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Botão:
- Button Reset
Fonte de alimentação:
- 100–240 V~50/60 Hz
Flash:
- SPI 4MB + NAND 128MB
DRAM:
- 512MB
LED:
- PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensões (LxPxA):
- 226 x 131 x 35 mm
Performance:
Concurrent Session:
- 150,000
IPsec VPN Throughput:
291.6 Mbps
Funções Básicas:
WAN Connection Type:
- Static/Dynamic IP
- PPPoE
- PPTP
- L2TP
DHCP:
- DHCP Server
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
MAC Clone:
- Modify WAN/LAN MAC Address†
IPTV:
- IGMP v2/v3 Proxy
IPv6:
- Developing‡
VLAN:
- 802.1Q VLAN
Funções Avançadas:
ACL:
- IP/Port/Protocol/Domain Name Filtering
Advanced Routing:
- Static Routing
- Policy Routing
Bandwidth Control:
- IP/Port-based Bandwidth Control
- Guarantee & Limited Bandwidth
Load Balance:
- Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing§, Failover)
- Online Detection
NAT:
- One-to-One NAT§
- Multi-Net NAT
- Virtual Server
- Port Triggering§
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security:
- SPI Firewall
- VPN Passthrough
- FTP/H.323/PPTP/SIP/IPsec ALG
- DoS Defence, Ping of Death
- Local Management
Session Limit:
- IP-based Session Limit
VPN:
IPsec VPN:
- 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IKEv1/v2*
- MD5, SHA1 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
PPTP VPN:
- PPTP VPN Server
- 10 PPTP VPN Clients
- 50 Tunnels
- PPTP with MPPE Encryption
L2TP VPN:
- L2TP VPN Server
- 10 L2TP VPN Clients
- 50 Tunnels
- L2TP over IPSec
OpenVPN:
- OpenVPN Server*
- 10 OpenVPN Clients*
- 50 OpenVPN Tunnels*
Segurança:
Attack Defense:
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
Filtering:
- WEB Group Filtering§
- URL Filtering
- Web Security§
ARP Inspection:
- Sending GARP Packets§
- ARP Scanning§
- IP-MAC Binding§
- Access Control: Source/Destination IP Based Access Control
Autenticação:
Web Authentication:
- No Authentication
- Simple Password*
- Hotspot(Local User / Voucher* / SMS* / Radius*)
- External Radius Sever
- External Portal Sever*
- Facebook*
Gestão:
Omada App:
- Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
Service:
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Cloud Access:
- Sim (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Maintenance:
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3*
- Diagnostics (Ping & Traceroute)§
- NTP Synchronize§
- Syslog Support
Management Features:
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
- ZTP (Zero-Touch Provisioning)**
Outros:
Certificações:
- CE, FCC, RoHS
Requisitos de Sistema:
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Ambiente:
- Temperatura de operação: 0–40 ? (32–104 ?);
- Temperatura de armazenamento: -40–70 ? (-40–158 ?)
- Umidade Operacional: 10–90% RH non-condensing
- Umidade de Armazenamento: 5–90% RH non-condensing
* OpenVPN requer o uso de Omada Hardware Controller, Software Controller ou Cloud-Based Controller.
** O provisionamento Zero-Touch requer o uso do Omada Cloud-Based Controller.
Conteúdo da embalagem:

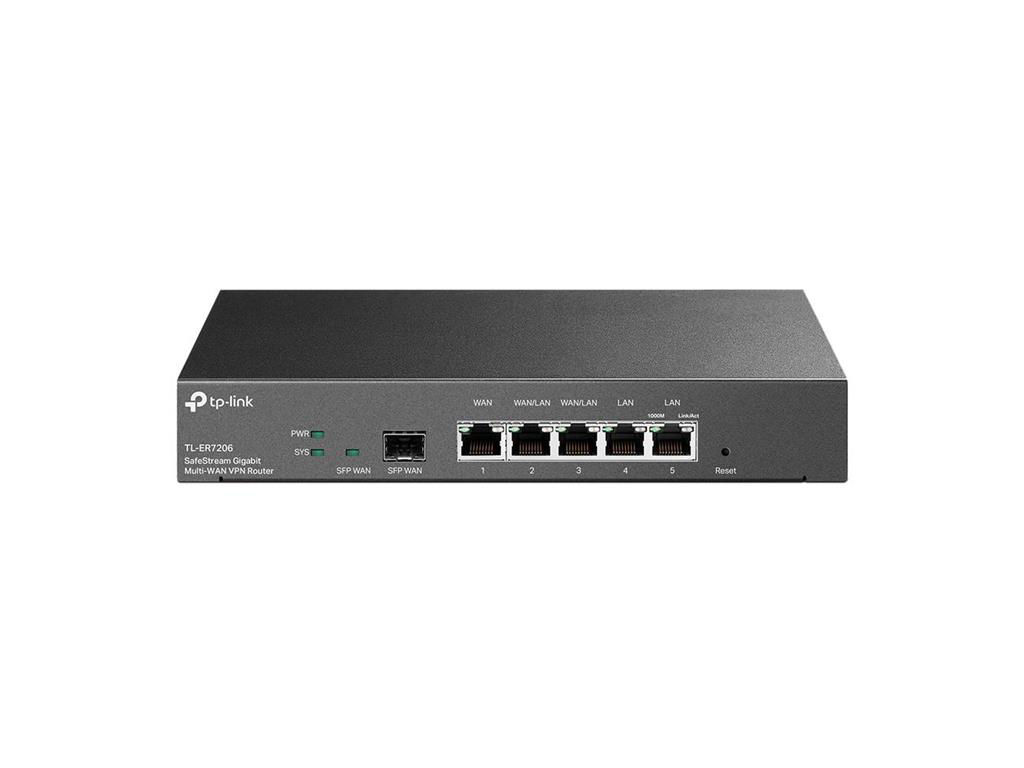

- 1 x Roteador TP-Link TL-ER7206
- 1 x Cabo de energia
- 1 x Guia rápido de instalação
