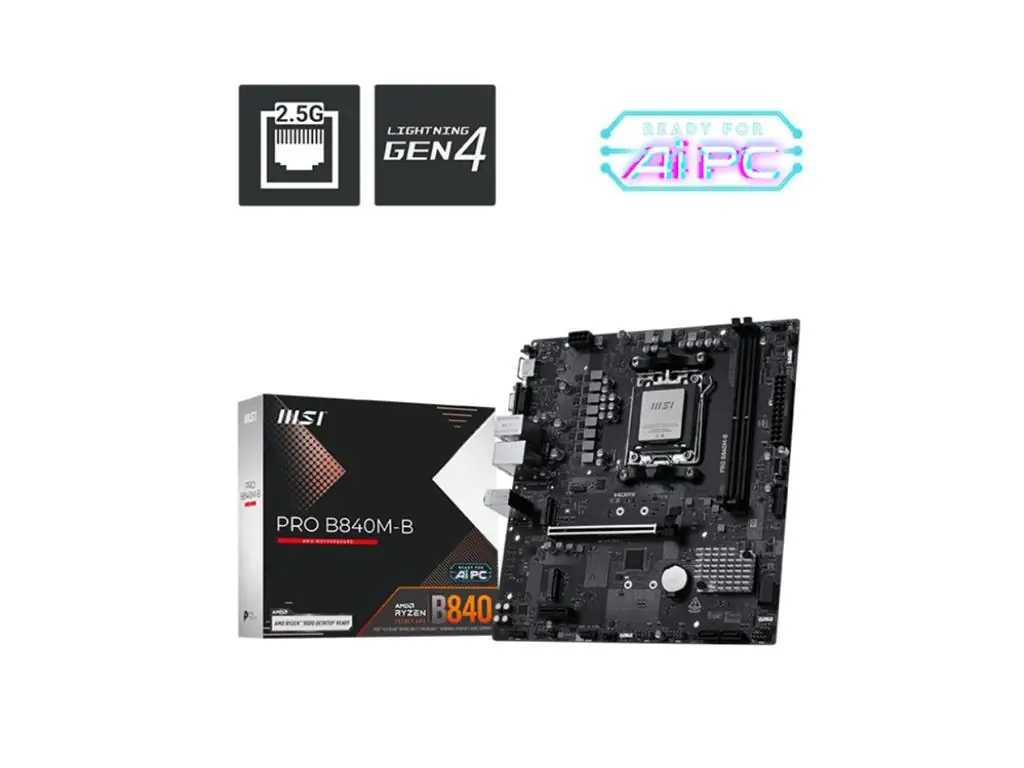

Placa Mae Msi Amd (Am5) Ddr5 Micro Atx - Pro B840m-B

________________________________________
Chipset
• Chipset: AMD B840

Processador

• Soquete: AM5
• Suporte a processadores:
AMD Ryzen™ séries 9000 / 8000 / 7000 (Desktop)
________________________________________
Memória

• Slots: 2x DDR5 UDIMM
• Capacidade máxima: 128 GB
• Frequências suportadas:
•DDR5 8000 – 5600 MT/s (OC)
•DDR5 5600 – 4800 MT/s (JEDEC)

• Overclock máximo (Ryzen™ 9000):
•1DPC 1R: até 8000+ MT/s
•1DPC 2R: até 7200+ MT/s

• Suporte a:
•AMD POR Speed e JEDEC Speed
•Overclock de memória
•AMD EXPO™
•Dual Channel
•Memória Non-ECC, Un-buffered
•CUDIMM (Clock Driver Bypass apenas)
________________________________________
Gráficos Integrados (Onboard)

• 1x HDMI™
•HDMI 2.1
• Resolução máxima: 4K @ 60 Hz

• 1x VGA
•Resolução máxima: 2048 x 1536 @ 50 Hz
•2048 x 1280 @ 60 Hz
•1920 x 1200 @ 60 Hz
________________________________________
Slots de Expansão

• 1x PCI Express x16
• 1x PCI Express x1
• Interface:
• PCI_E1: PCIe 4.0 x16 (via CPU)
• PCI_E2: PCIe 3.0 x1 (via chipset)

Compatibilidade do slot PCI_E1

• PCIe 4.0 x16: Ryzen™ 9000 / 7000
• PCIe 4.0 x8: Ryzen™ 8700 / 8600 / 8400
• PCIe 4.0 x4: Ryzen™ 8500 / 8300
________________________________________
Áudio

• Codec: Realtek® ALC897
• Áudio de alta definição: 7.1 canais
________________________________________
Armazenamento

• 2x M.2
•M.2_1 (via CPU): PCIe 4.0 x4 – 2280 / 2260
•M.2_2 (via CPU): PCIe 4.0 x4 – 2280 / 2260

• 4x SATA 6 Gb/s

Compatibilidade M.2

• M.2_2:
•PCIe 4.0 x4
• PCIe 4.0 x2: Ryzen™ 8500 / 8300
________________________________________
RAID

• SATA: RAID 0 / 1 / 10
• M.2 NVMe: RAID 0 / 1
________________________________________
Conectividade USB
Painel Traseiro

• 2x USB 2.0
• 4x USB 5Gbps Type-A

Painel Frontal

• 4x USB 2.0
• 2x USB 5Gbps Type-A
• 1x USB 5Gbps Type-C
________________________________________

Rede

• LAN: Realtek® 8125D
• Velocidade: 2.5 Gigabit Ethernet
________________________________________
Conectores Internos

• 1x ATX_PWR (24 pinos)
• 1x CPU_PWR
• 1x CPU Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x COM Port (JCOM)
• 3x RGB Addressable V2 (JARGB_V2)
• 1x RGB LED (JRGB)
• 1x TPM Header (TPM 2.0)
• 4x USB 2.0 internos
• 2x USB 5Gbps Type-A internos
• 1x USB 5Gbps Type-C interno
________________________________________
Recursos de LED

• 4x EZ Debug LED
• 1x EZ Memory Detection LED
________________________________________
Painel Traseiro

• Botão Clear CMOS
• HDMI™
• VGA
• USB 5Gbps Type-A
• USB 2.0
• Porta LAN 2.5G
• Conectores de áudio
• Botão Flash BIOS
________________________________________
Sistema Operacional

• Windows® 11 64-bit
________________________________________
Formato e Dimensões

• PCB: mATX
• Dimensões: 226 x 243,84 mm
