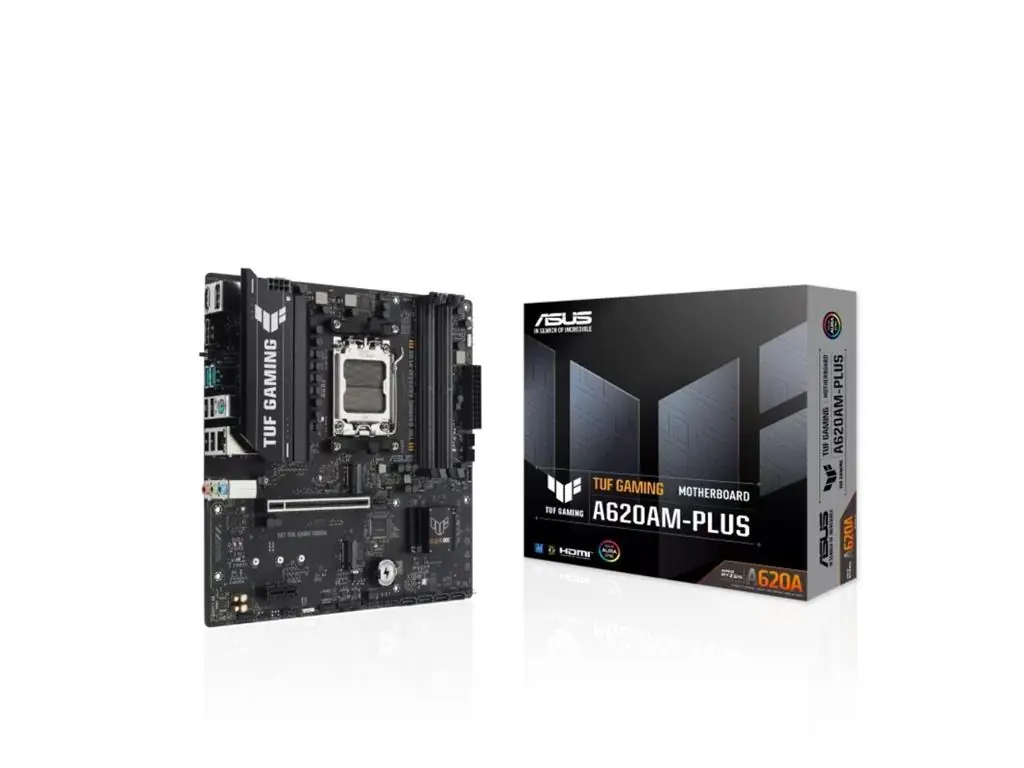

Placa Mae Asus Amd (Am5) Ddr5 Micro Atx - Tuf Gaming A620am-Plus

________________________________________
Informações Gerais

• Marca: ASUS
• Modelo: TUF GAMING A620AM-PLUS
• Chipset: AMD A620A
• Soquete: AM5
• Formato: Micro-ATX
• Dimensões: 24,4 x 24,4 cm
• Sistema Operacional: Windows 11 / Windows 10 64-bit
________________________________________
Processador

• Compatível com:
• AMD Ryzen 9000 Series
• AMD Ryzen 8000 Series
• AMD Ryzen 7000 Series

• Soquete: AM5
________________________________________
Memória

• 4x Slots DIMM DDR5
• Capacidade máxima: 256GB
• Suporte até 7600+ MT/s (OC) (dependendo da CPU)
• Dual Channel

• Compatível com:
• DDR5 ECC e Non-ECC Unbuffered
• On-Die ECC (memórias Non-ECC)

• Perfis:
• AMD EXPO
• ASUS AEMP
________________________________________
Vídeo (depende da CPU)

• 2x DisplayPort
• 1x HDMI

• Suporte até:
• 8K@30Hz (DisplayPort 1.4)
• 4K@60Hz (HDMI 2.1)
________________________________________
Slots de Expansão

• 1x PCIe 4.0 x16
• x16 (Ryzen 9000/7000)
• x8/x4 (Ryzen 8000)

• 1x PCIe 3.0 x1
________________________________________
Armazenamento

• 2x Slots M.2 (PCIe 4.0 x4*)
• 2280
• 2242/2260/2280

• 4x Portas SATA 6Gb/s

RAID (AMD RAIDXpert2)

• Ryzen 9000: RAID 0/1/5/10
• Ryzen 8000: RAID 0/1
• Ryzen 7000: RAID 0/1/10
________________________________________
Rede

• Realtek 2.5Gb Ethernet
• TUF LANGuard
________________________________________
USB (Painel Traseiro)

• 2x USB 10Gbps (Type-A)
• 4x USB 2.0 (Type-A)
________________________________________
USB (Interno)

• 1x USB 5Gbps Type-C
• 1x Header USB 5Gbps (2 portas adicionais)
• 2x Headers USB 2.0 (4 portas adicionais)
• USB-C Power Delivery até 5V/3A
________________________________________
Áudio

• Realtek 7.1 Surround HD Audio
• Até 24-bit / 192 kHz
• Recursos:
• Audio Shielding
• Capacitores premium
• PCB dedicada para áudio
• Header S/PDIF
________________________________________
Portas Traseiras

• 2x USB 10Gbps
• 4x USB 2.0
• 2x DisplayPort
• 1x HDMI
• 1x LAN 2.5Gb
• 3x Áudio
• 1x Botão BIOS FlashBack
• 1x PS/2 combo
________________________________________
Conectores Internos

Ventoinhas

• 1x CPU Fan
• 2x Chassis Fan

Energia

• 1x 24 pinos
• 1x 8 pinos 12V

Outros

• 3x Headers ARGB Gen 2
• 1x Clear CMOS
• 1x COM
• 1x F_AUDIO
• 1x S/PDIF Out
• 1x Header painel frontal
________________________________________
Recursos Especiais

TUF Protection

• DIGI+ VRM
• ESD Guards
• Overvoltage Protection
• SafeSlot Core+
• I/O traseira em aço inox

Q-Design

• M.2 Q-Latch
• Q-DIMM
• Q-LED Core
• Q-Slot

Thermal

• Dissipador VRM

Iluminação

• Aura Sync
• Headers ARGB Gen 2
________________________________________
Software

• Armoury Crate
• Aura Sync / Aura Creator
• Fan Xpert 2+
• ASUS DriverHub
• TUF Gaming CPU-Z
• Adobe Creative Cloud (trial)
• Norton 360 for Gamers (trial)
• WinRAR (trial)
________________________________________
BIOS

• 256 Mb Flash ROM
• UEFI AMI BIOS
• CrashFree BIOS 3
• EZ Flash 3
• EZ Mode
• BIOS FlashBack
________________________________________
Gerenciamento

• WOL by PME
• PXE
________________________________________
Acessórios Inclusos

• 2x Cabos SATA
• Espelho I/O
• Kit parafusos M.2
• Adesivo TUF Gaming
• Guia rápido
________________________________________
