Architecture: NVIDIA Ampere Architecture
Process Size: 8nm
Transistors: 13.25 Billion
Die Size: 276 mm2
CUDA Cores: 3328
Tensor Cores: 104
RT Cores: 26
Peak FP32 Performance: 7.99 TFLOPS
RT Core Performance: 15.6 TFLOPS
Tensor Core Performance: 63.9 TFLOPS
GPU Memory: 6 GB GDDR6 with ECC
GPU Memory Clock: 6001 MHz
Memory Interface: 192-bit
Memory Bandwidth: 288 GB/sec
Maximum Power Consumption: 70 W
NVIDIA Quadro and RTX Power Guidelines
System Interface: PCI Express 4.0 x16

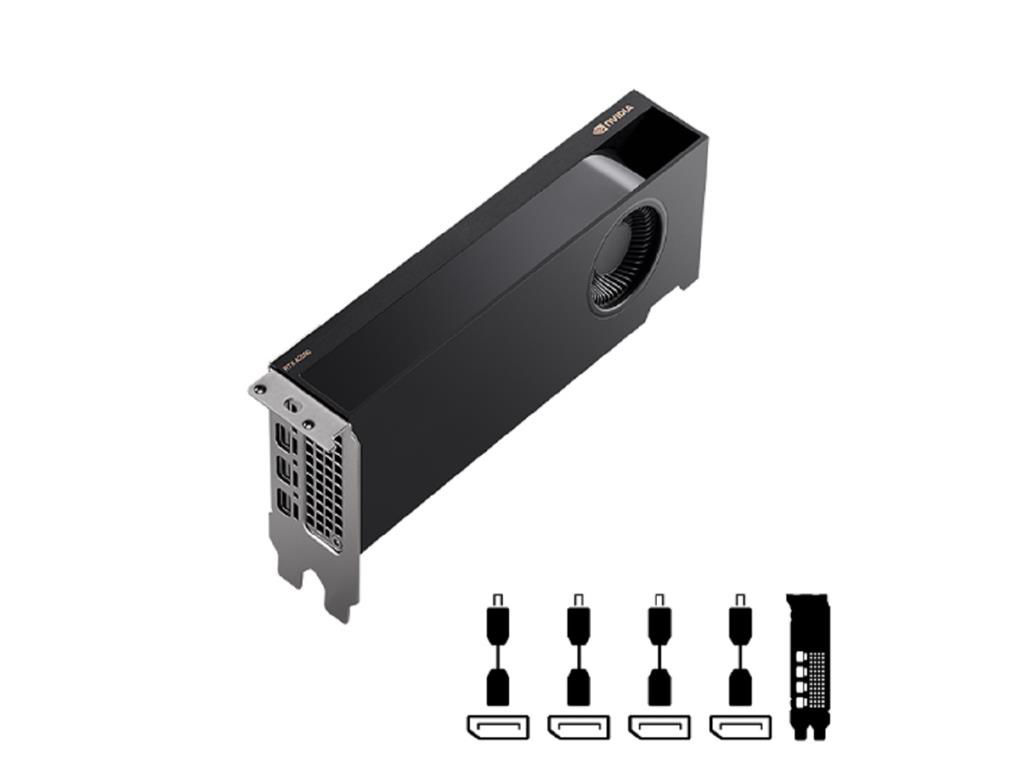

Display Connectors: 4x mDP Latching
Form Factor: 2.713" H x 6.6" Low Profile / Dual Slot
Thermal Solution: Active Fansink
Max Digital Resolution: 2x 7680 x 4320 at 60 Hz
Max Displays: 4x at 5K / 5120 x 2880 at 60 Hz
NVIDIA Quadro and RTX Display Resolution Support
HDR Support: Yes
AR / VR / XR Ready Yes
Quad Buffered Stereo: Yes
Hardware Accelerated BVH: Yes
NVIDIA DLSS; Yes
NVIDIA Mosaic, Warp and Blend: Yes
NVIDIA RTX Experience: Yes
NVIDIA RTX Desktop Manager: Yes
NVIDIA Broadcast Application: Yes
NVENC / NVDEC: 1x H.264 and HVEC Encoders
1x Decode Engine
Graphics APIs: DirectX 12.07, Shader Model 5.17, Open GL 4.68, Vulkan 1.2
Compute APIs: CUDA, DirectCompute, Open CL
